1. Khoom qhia
-them sai/tso tawm, lub voj voog ntev lub neej thiab kev ua haujlwm dav dav los tsim cov kev daws teeb meem uas ntseeg tau rau ntau hom kev siv hluav taws xob cia.
-Kev ruaj ntseg rau tus kheej, thaj chaw thiab daim ntawv thov kev lag luam uas muab lub zog tseem ceeb thaub qab, txuag nyiaj txhua hnub ntawm cov nqi hluav taws xob thiab tsis cuam tshuam kev siv hluav taws xob txuas ntxiv txuas ntxiv tsis tu ncua
-Rustust profile profile nrog 98% kev ua haujlwm tau zoo.
2. Khoom ntsuas

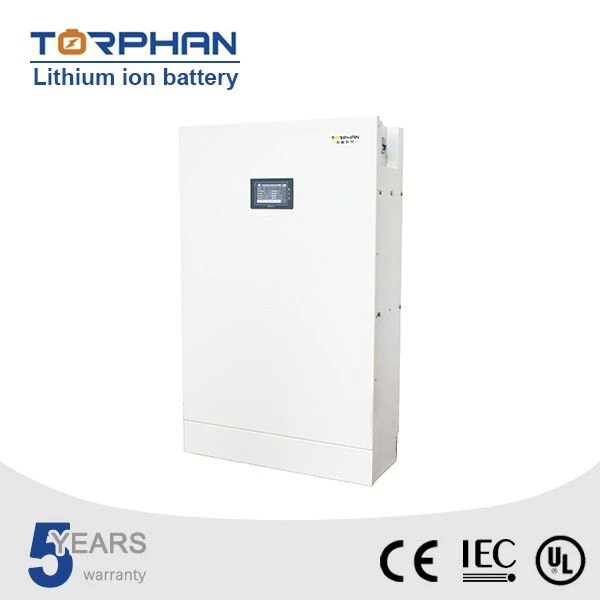

khoom npe | 48v sib sib zog nqus voj voog rechargeable hnub ci li ion roj teeb |
Qauv | Li-S51206 |
Nyob Volt | 51.2 wb |
Peev Xwm Muaj Peev Xwm | 206ah ua |
Zog Zog | 10.5 kwv |
Ua hauj lwm Volt ntau | 48 ~ 57.6Vdc |
Qhov tob ntawm Kev Tso Tawm | 96% |
Txheem them tam sim no | 50A |
Txuj tso tawm tam sim no | 50A |
Max them tam sim no | 100A |
Max tawm tam sim no | 100A |
Charge Kub ntau | 0℃～50℃ |
Kev ntsuas kub ntau | -20℃～55℃ |
Sotorage Kub ntau | -30℃～60℃ |
Loj (L*W*H） mm | 532*230*490 |
Qhov hnyav | 110 Kg |
Parralellable | 6ks ua |
Yeem Zog Zog | 10.5Kwh/21Kwh/31.5Kwh/42Kwh/31.5Kwh/63Kwh |
General | ||
BMS | Kev koom ua ke | |
Tam sim no Shunt | Kev koom ua ke | |
Kub sensor | Kev koom ua ke | |
Roj teeb dhau fuse tam sim no | kev koom ua ke | |
Kev Ntsuas Zoo (2A) | kev koom ua ke | |
Cov Hluav Taws Xob Sab Nraud pib raws qhov hluav taws xob lossis %SOC | Kev koom ua ke | |
Kev sib txuas lus rau Charger | CAN1 (CAN Bus) | |
Kev sib txuas lus rau Inverter | CAN2 (CAN Bus) | |
Kev sib txuas lus rau Zaub | RS485 | |
Cov ntaub ntawv kaw | IP21 sab hauv tsev/ IP65 sab nraum zoov | |
Zaub Qhia | Roj teeb pob hluav taws xob, them/tso tawm tam sim no, ntawm tes' volt, Cell' qhov kub, cov lus ceeb toom, cov ntaub ntawv tshuav nyiaj li cas | |
Txuj Ci Txuj Ci | 5 xyoos | |
xaiv ncua Warranty | 10 xyoo | |
| Kev Tiv Thaiv thiab Txuj Ci | ||
Kev tiv thaiv | Tshaj them, tshaj tawm, dhau kub, dhau tam sim no | |
Kev thauj mus los | UN38.3 | |
Txuj Ci Kev Nyab Xeeb | IEC 62619, UL1973 | |
3. Khoom ntshai
- Kev pab lub neej> 6000 mus
- Tsis muaj "cim xeeb" cuam tshuam
- Txo cov pa roj carbon hneev taw
- Tsis muaj cua sov tsim, txo qis, Saib xyuas cua sov lossis ua kom txias txias
- Cov Cuab Yeej Siv Tau Zoo- Kev koom ua ke ntawm Wi-nkaus transceivers pab IoT qhia rau Web-based software uas ua kom muaj roj teeb zoo dua thiab ua haujlwm tau zoo.
- Kev tswj tau yooj yim - Ua haujlwm xaiv ntau ntawm cov xa tawm thiab cov neeg tiv tauj, ntau qhov programmable I/Os, rollover/crash sensors thiab programmable
- Ntau Voltages - 24/36/48/80/96 Volts txog 1200 Ahr
- Ua-Hauv Kev Nyab Xeeb- BMS nrog Breaker, fuse, relays,
- On/Off Hloov rau Shipping& Kev teeb tsa
- Modular, Scalable& Pov Thawj Ua Tau Zoo
- Kev tiv thaiv ntev tshaj plaws hauv kev lag luam (tsib xyoos lav)
- Muab Lub Xeev Tus Nqi raug los ntawm kev tswj hwm roj teeb ua ke.
4. Daim ntawv thov
Hnub ci ua haujlwm khaws cia
UPS
RV, Caravan, Hnub ci, Tubrog nkoj, Tsev Cia thiab Off-Grid
5. Khoom Khoom
1, Ntse BMS, tham nrog inverter los ntawm Canbus lossis RS485
2, Saib Xyuas Chaw Taws Teeb
3 ： Lub neej voj voog ntev> 7000 cycles
4 ： Ua kom sib npaug (3A)
5 ： program teeb tsa
6 ： qhib/tua lub tshuab hluav taws xob tau txais
